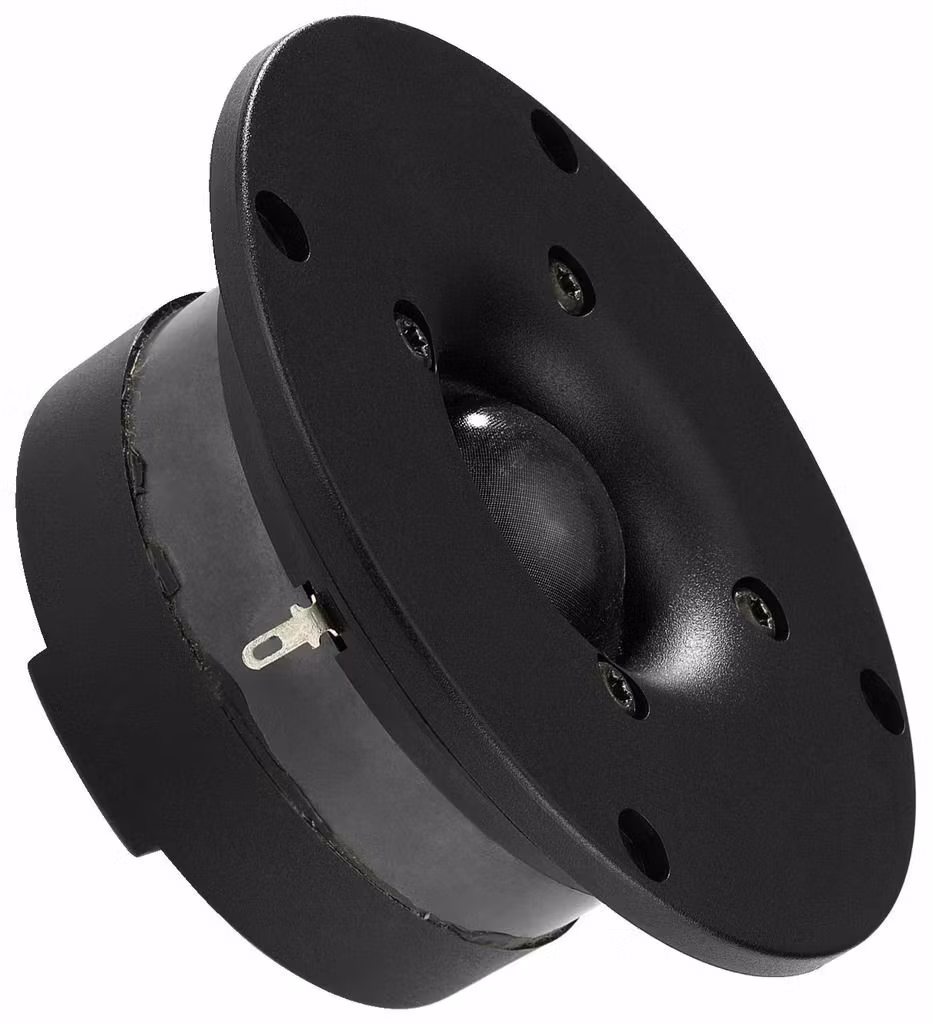

Monacor DT-300 Large Membrane Area Hi-Fi Doughnut Tweeter 8Ω 100W 070305

30 mm silk cone

Low resonant frequency

Excellent dynamic response and a high stability, even with low crossovers

Ferrofluid of high liquidity for a fine brilliance

Particularly suitable for high-performance applications and D’Appolito arrangements in the top hi-fi range

Brand                 MONACOR

Impedance (Z) 8 Ω

Frequency range                         fx-19,000 Hz

Resonant frequency (fs)           750 Hz

Rec. crossov. frequ. (fmax.) (12 dB/oct.)        2,000 Hz

Power rating (RMS)                   50 W

Peak music power output (MAX)                      100 W

Sensitivity         93 dB/W/m

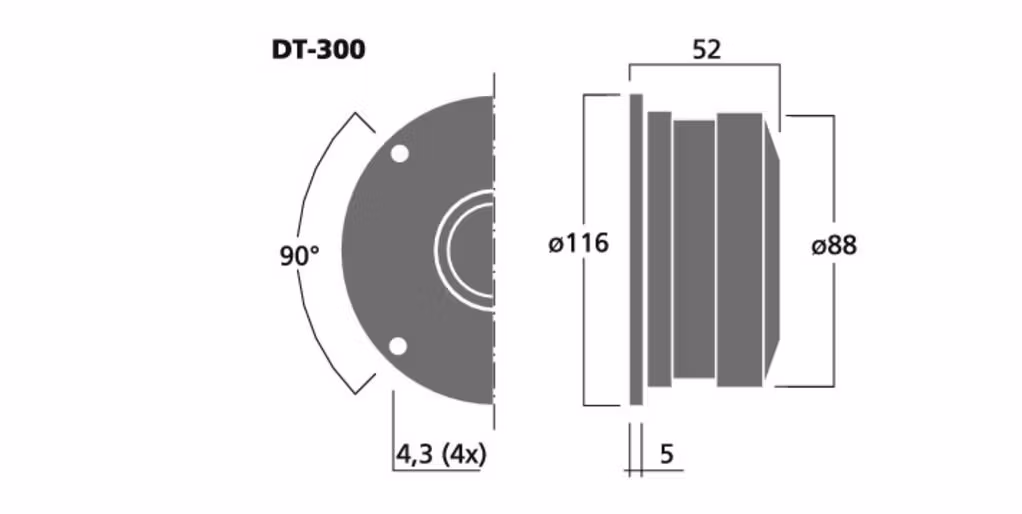

Voice coil diameter                    Ø 30 mm

Magnet diameter                       Ø 88 mm

Mounting cutout                        Ø 90 mm

Mounting depth                         52 mm

Dimensions      Ø 116 x 52 mm

Outside diameter                       Ø 116 mm

Width                 Ø 116 mm

Depth                 52 mm

Admiss. ambient temp.            0-40 °C

Weight               0.65 kg

Packing unit     1

Low-impedance                          1

EAN                    4007754146493

Made in             CN
