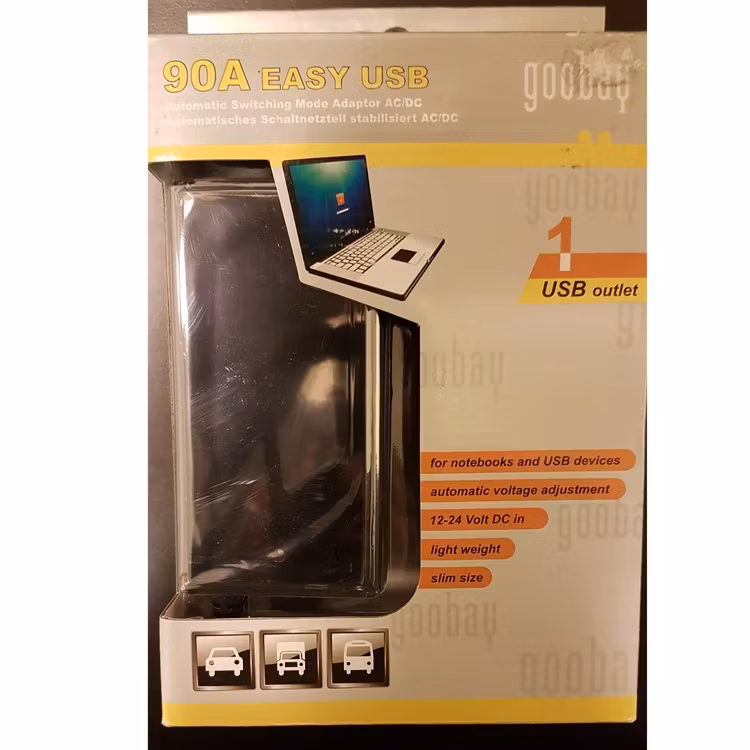

90A easy USB goobay

90A easy USB goobay

One unit for all car, truck , bus or motorboats,
this power unit can be used with DC power between 12-24 V DC.

Automatic voltage choice by the DC plugs
-With LED power control
-With 10 easy line DC plugs

Plug P 16V : 5.5 x 2.5 mm
Plug P 19V : 5.5 x 2.5 mm
plug C 19V : 4.75 x 1.7 mm
plug D 15V : 3.0 x 6.3 mm
plug E 16V : 6.5 x 1.4 mm
plug E 19V : 6.5 x 1.4 mm
plug G 19V : 5.0 x 1.0 mm
plug H 19V : 5.5 x 1.9 mm
plug Q 19V : 7.4 x 0.6 mm
plug N 19V : 7.9 x 0.9 mm

Suitable for most Notebooks of the manifactures:
Acer, Compaq, Dell, Fujitsu, Gateway, HP, Toshiba, Winbook, IBM, Lenovo, MSI, Panasonic, Samsung

size: 55 x 110 x 19mm

Specifications:
Input Voltage: 12-24 V DC
Output Voltage: 15/16/19 V
Output Power: 4.73A
Input-Plug AC: Car/KFZ
USB POrts: 1 USB port (1A)

Over-Current Protection
Overload Protection
Short-Circuit-Proof
