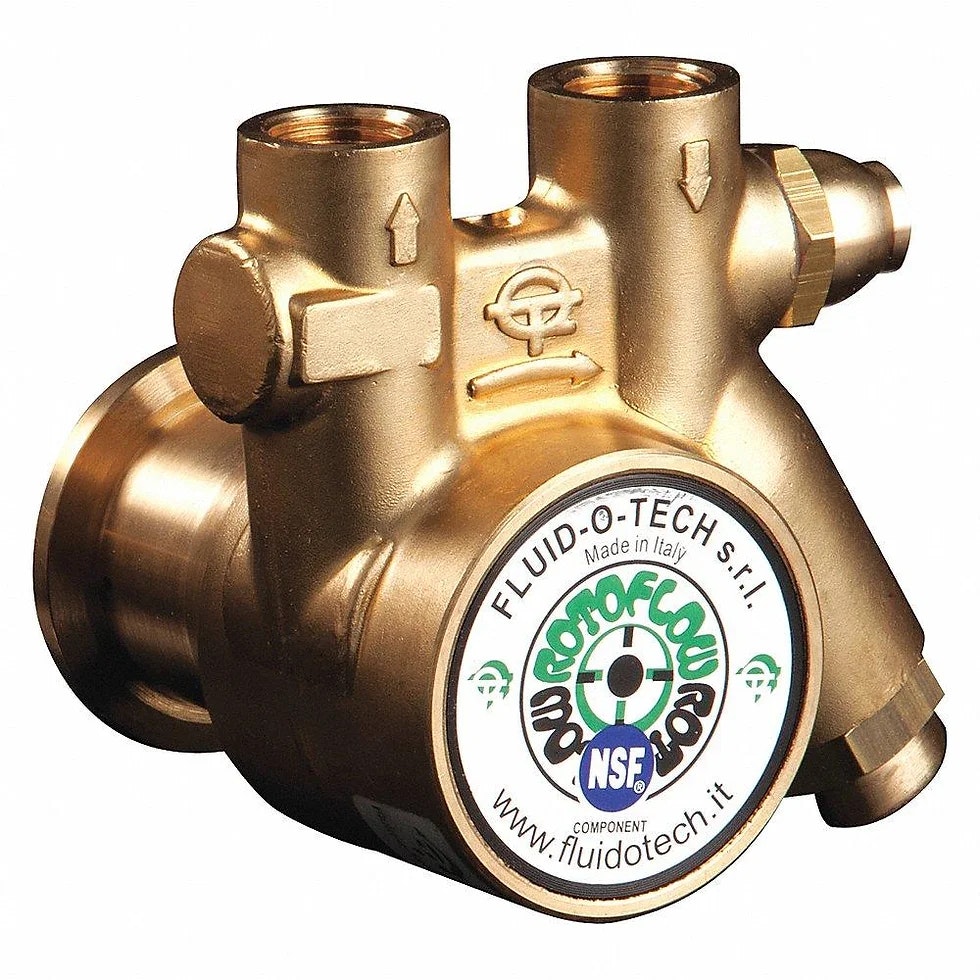

Fluid-O-Tech PA301X Brass rotary vane pump

Fluid-O-Tech PA301X Brass rotary vane pump

SKU: PA301X

Fluid-o-Tech PA301X is a 105 gallon per hour rotary vane pump. The PA301X has an NSF approved Buna-N seal, and comes with a standard double flat shaft. The pump housing is constructed out of Brass, and comes with a band clamp mount and a pressure bypass. Has a built in strainer.

Specifications:

Flow rate: 105 gallons per hour

Material: Lead-free brass housing & graphite chamber

1/2" NPT ports

Clamp Mount: 4.2 lbs. (1.9kg)

Max Static Pressure: 290 PSI

Max Operating Temperature: 158°F

Max Speed: 1450 RPM

High Volume Rotary Vane Pump

Applications:

Post-mix drink dispensers

Cooling & booster systems

Fuel injection systems

Reverse osmosis systems

Ultra-filtration systems

Water dispensing systems

Body Material Brass

Elastomer Type Buna-N

Inlet Connection 1/2" MPT

Max Outlet Pressure 230 PSI

Mounting Options Clamp On

Nominal Speed – Rpm 1450

Outlet Connection 1/2" MPT

Power 1 hp

Pump Max Flow Rate (Gpm) 105

Rotation / Slinger / Passivation / Strainer Clockwise

Self-Priming (Water) Yes

Size 1/2"

Connection Type Male (MPT)

Type Rotary Vane Pumps

Warranty & Certifications

Certifications NSF 169, WRAS
